6th of August
Monday
1. Organized Arduino Bluetooth control stepper motor.
2. Placed all the component in electrical box.
3. The component that used were:
i. Arduino
ii. Stepper motor driver
iii. stepper motor and railing
iv. HC-06 Bluetooth module
v. 24 V Power source
7th of August
Tuesday
1. Add relay to the Bluetooth control stepper motor.
2. Brainstorming idea for sate skewing machine.

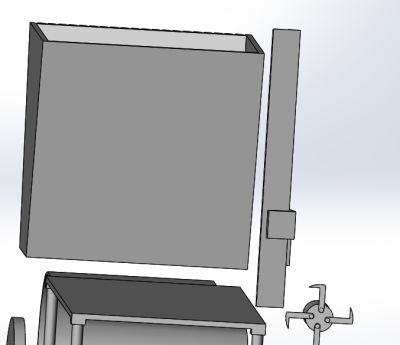

3. Design a sate machine using Solidworks.
4, The sate machine consist of:
i. hopper
ii. rotating lever
iii. skewer slot
iv. conveyor
v. motor
8th of August
Wednesday
1. Did an animation for the sate machine that were designed.
2. Used Solidwork animation to make the animation.
Animation for sate machine
9th of August
Thursday
1. Build the machine sate prototype.
2. Start from sketching the dimension and went out buying material for the prototype.
3. Used PVC pipe to make conveyor and 4 motor control by Arduino Mega to move the conveyor.

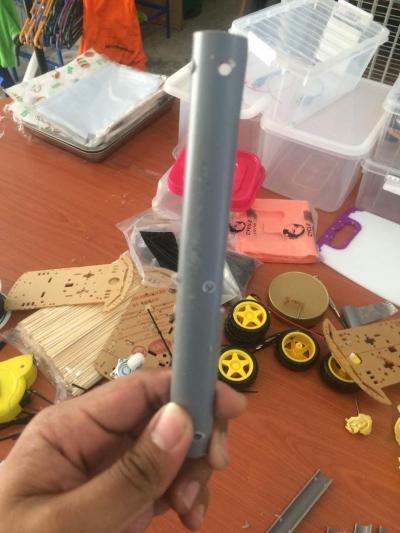

4. The PVC pipe were cut into 15cm length and 3 holes were drilled on both left and right.
5. By using cable tie, all of the PVC pipe were sewed together.
10th of August
Friday
1. make a little adjustment to the conveyor because it stuck when moving.
2. Start building the skew slot .
3. The skew slot were made from plywood.
4. Add a servo ass rotating mechanism.
11th of August
Saturday

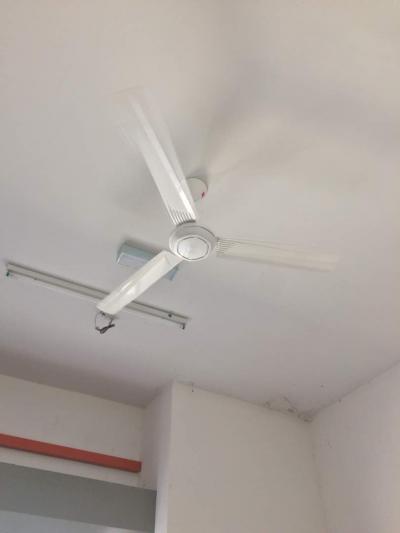

1. Installing new fan in the office.
2. The capacitor wiring for the fan was already did by the manufacturer.
3. Only live, ground, and neutral wire need to be connected.
4. For the regulator, it was connected only to live wire.
