27th of August
Monday
1. Designed a rotational to linear servo adapter using Solidworks.
2. The adapter was for sate machine prototype.
3. The adapter function was to push skew out of the skew slot.
4. 3D printed the adapter part.
5. When in use with microservo SG90, the adapter could push a full 150 ml water bottle.
Rotational to linear
28th of August
Tuesday

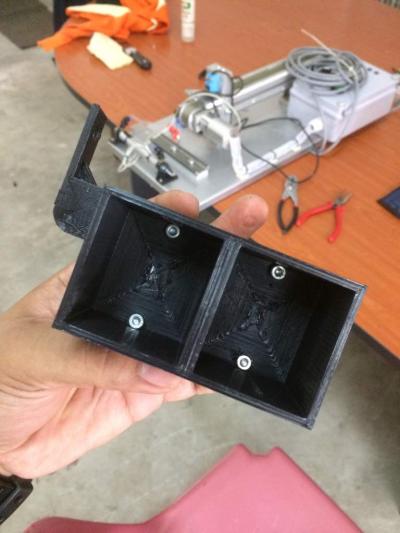

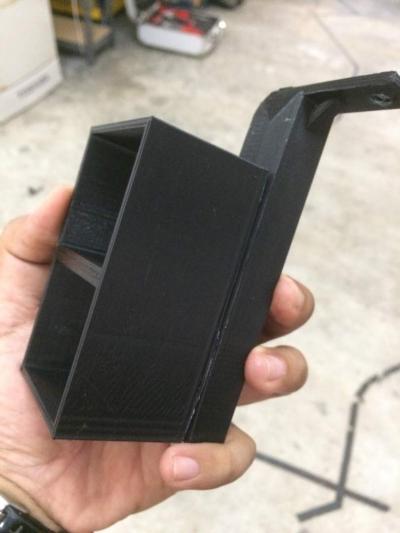

1. Redesign and reprint bucket for PLC training kit.
2. Screwed the bucket and other bracket to make sure it holds tight.
3. In the afternoon, my supervisor and I went to PLC vendor for Panasonic at Bukit Jalil.

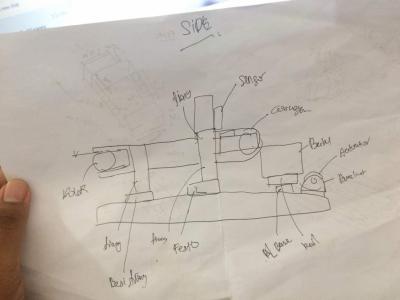

4. Later that day, I was tasked to draw 3D model for the PLC training kit.
5. I did managed to take the training kit dimensions.
Solidowork model for PLC training kit
29th of August
Wednesday

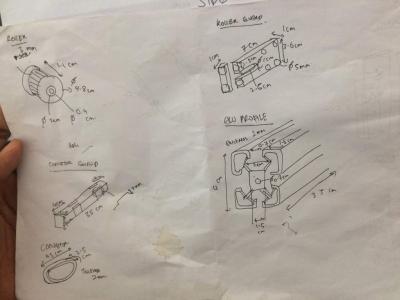

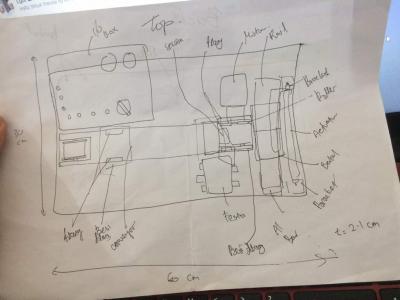

1. Made 2D dimensions for the PLC training kit that were drew.
2. Delivered the PLC training kit to customer.
PLC training kit dimension
30th of August
Thursday

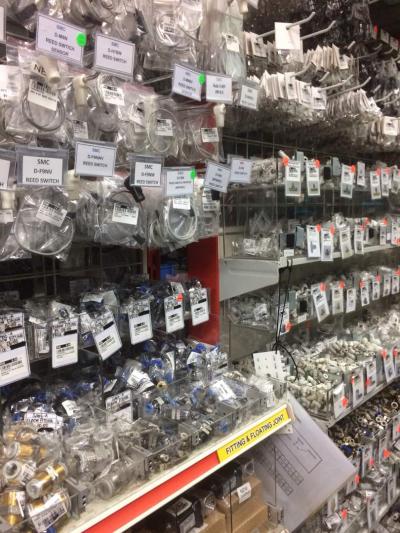

1. Went to electrical and electronics retailer at Kota Kemuning.
2. The retailer sells industrial electronic and electrical parts, sensor, actuator, driver, PLC and many more.
3. The items that were sold there consist of original part, second hand part and refurbished unit.
4. Managed to grab a chance in exploring various of electrical and electronics part.
31st of August
Friday
Merdeka leave
1st of September
Saturday
Last day of internship
1. Had a PLC lesson session from my supervisor.
2. Things that I learnt:
i. setting timer using ladder diagram.
ii. count up and count down using ladder diagram.
3. Set up a mock traffic light using tower lamp.
