Digital Logic ?
My Reflection :

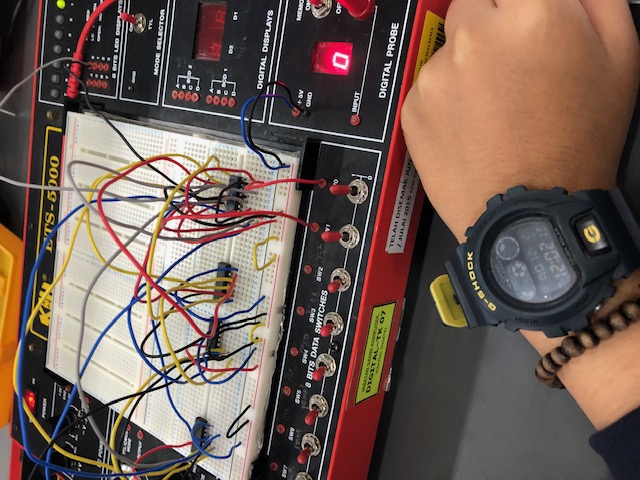

Study with Dr.Firoz allow me to learn more about digital logic. We have offen do coursework in class. This coursework trains students to input their algorithms into computer-assisted design software to create schematics of logic gates and circuits for a wide variety of electronic devices. Digital logic students also study combinational and sequential logic, memory elements, and flip-flops. The skills that I have learnt in this semester let me know how to wiring and checking the functionality of computer chips, specifying the output when the input is zero or one and determining the output of the gate. This course give me experinces to wiring the circuit by ourself. If the circuit cannot give the correct output, we must learnt for the failure and try it again, again and again. Do not give up easily because the mistakes can be corrected with double check the circuit again.
Digital logic is the underlying logic system that drives electronic circuit board design. Digital logic is the manipulation of binary values through printed circuit board technology that uses circuits and logic gates to construct the implementation of computer operations.
ETS 5000 Digital Training Systems

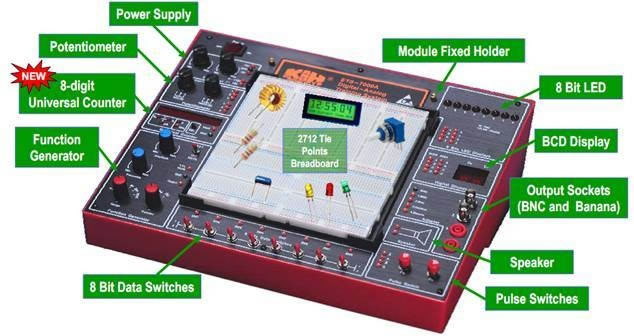

The ETS 5000 Digital Training Systems is a platform equipped with built-in powersupply (fixed and variable), function generator (sine, triangle, square, TTL) and Universal Counter as well as various common Input/Output components, such as data switches, 7-segment display, LED indicators, speaker, etc.
IC Chip

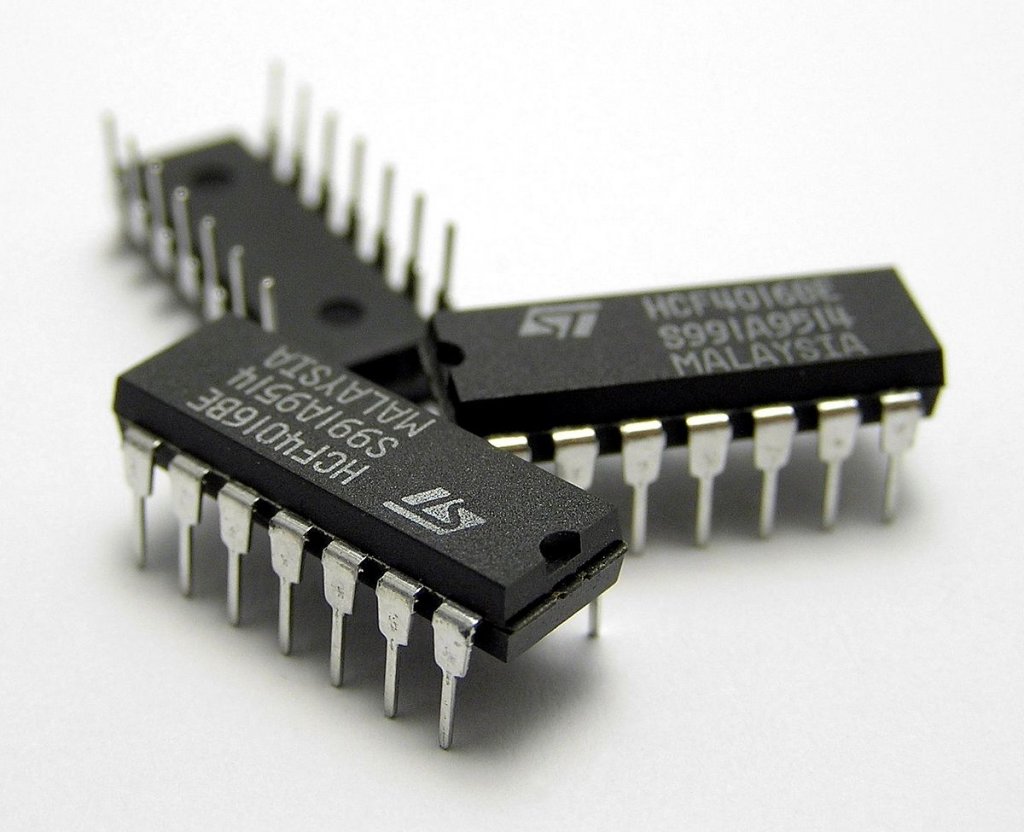

An integrated circuit or monolithic integrated circuit is a set of electronic circuits on one small flat piece (or "chip") of semiconductor material that is normally silicon.

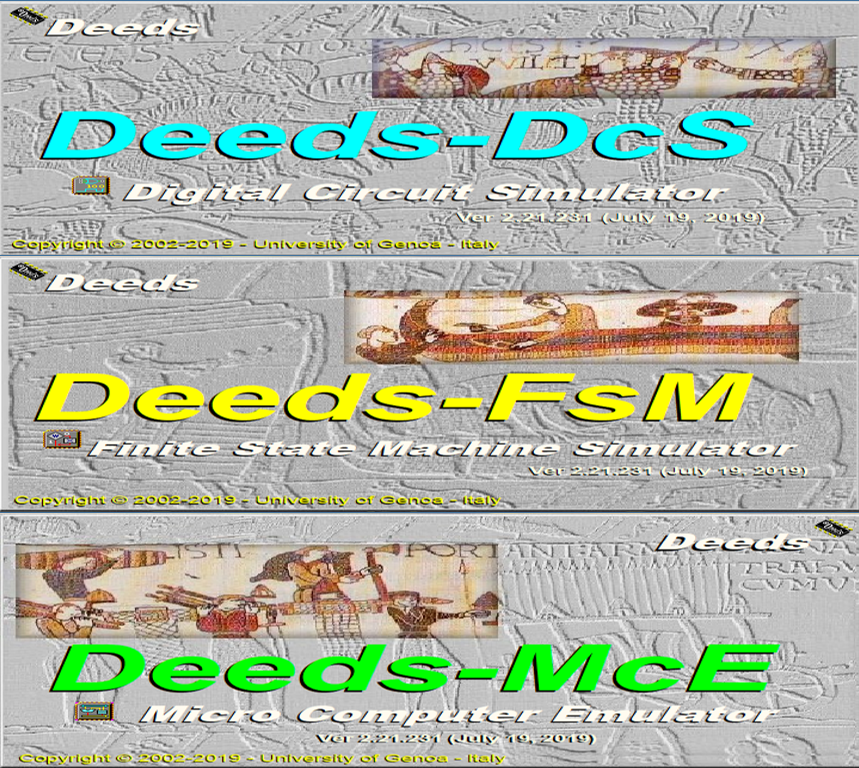

Deeds Simulator
Logic Gates
In electronics, a logic gate is an idealized or physical device implementing a Boolean function; that is, it performs a logical operation on one or more binary inputs and produces a single binary output.
Lab Test
Flip-Flop

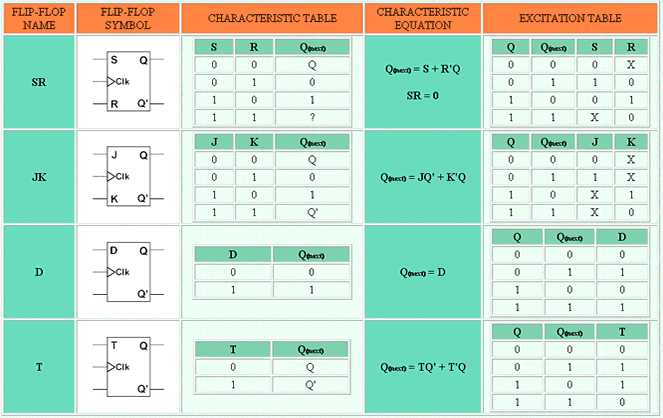

FF are synchronous bi-stale storage devices capable of storing one bit, where the output state only changes at a specified point on a triggering input called the Clock (CLK).
