Relection - Digital Logic
My reflections on this subject
Date : 22 December 2019
Venue : 328-02 (Digital Logic Lab)

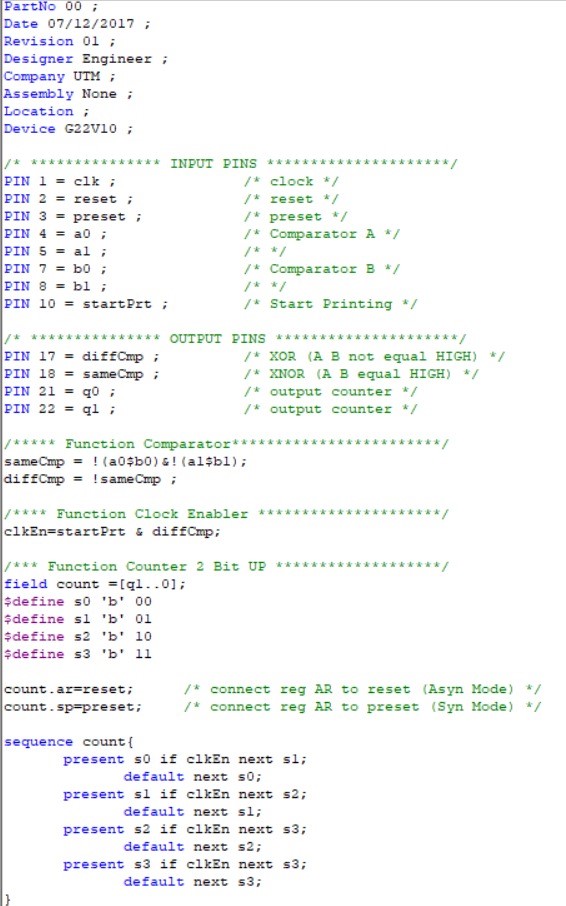

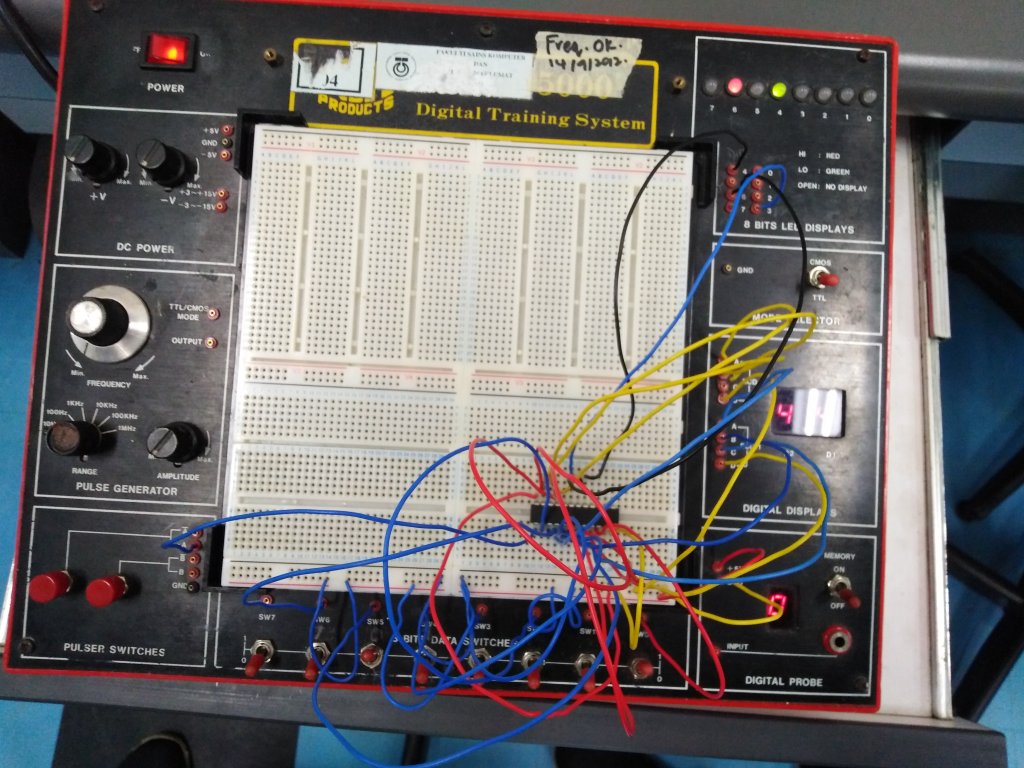

The first thing we do in our project is the coding of PLD programming for 2-bit and 3-bit followed by wiring the IC on ETS5000 training kit. We first overwrite the generated code in WinCUPL, compiled it and brought the .JED file to the lab and programme the code into GAL22V10 IC using Wellon Universal Programmer & Tester. After programming the IC, we tested our circuit as we wiring the IC on ETS5000 training kit.
Throughout our lab session, our reflection is teamwork is a main role where both of us need to co-operate with each other to get the accurate output and complete the task. Therefore, both of us work together to focus on not making any mistakes throughout the lab work. Although is a tough project but we still manage to get the exact output that we want.
The achievement for our mini project is we are able to make our own PLD device by writing the code in WinCUPL and program the IC using Wellon Programmer. Besides that, we also able to apply a simple Hardware Description Languages whereby we had specified a logic function for our mini project, which is Xerox machine.
Throughout the lab, our strength is we are able to work together to complete the mini project by guiding one another and contributed each other in completing mini project. But our weakness is we sometime make some careless mistake by inserting the wire into wrong pins on the GAL22V10 IC chip. However, we helped each other to troubleshoot our mistakes.
